ASI Silica Machinery – ASI Silica Machinery is the global market leader in the technology to produce silica based preforms using the Outside Vapor Deposition (OVD) process.

WHAT
WE DO:

• Install, commission, transfer technology, and support all equipment and processes

• Provide training in the USA and at the customer’s site in the operation of the equipment and process

• Support services are available on both a short and long term basis

Watch ASI/Silica Machinery being built and deployed in factories—

All ASI/Silica machines
are made in the USA

ASI/Silica Machinery, LLC was formed in 1997 with a mission to provide high quality and cost effective capital equipment and process technology to manufacturers of optical fiber and fused silica preforms.

FIND OUT MORE

Your Silica Quality

ASI/Silica Machinery has an aggressive development program to develop next generation equipment to help its customers continually improve both their cost of manufacturing and their product quality.

FIND OUT MORE

Improve

ASI/SILICA’S

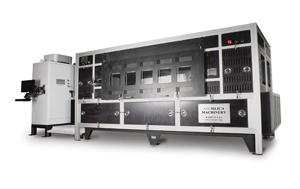

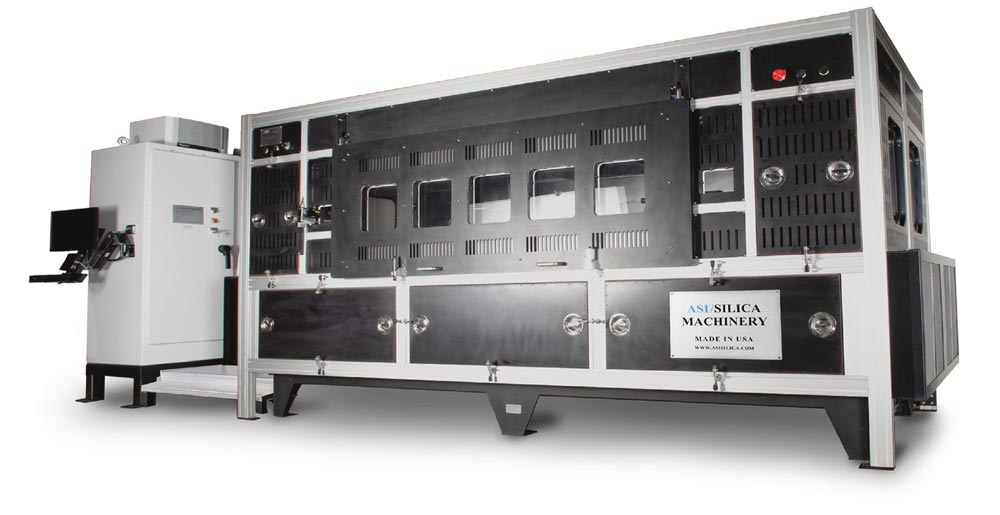

Dual Atmospheric Chemical Vapor Core System

This dual spindle system is an outside vapor deposition system capable of depositing germanium doped silica soot — it is used to fabricate single-mode optical fiber core preforms of the highest quality.

One of ASI/Silica’s many original machines.

Dual Atmospheric Chemical Vapor Core System Info »

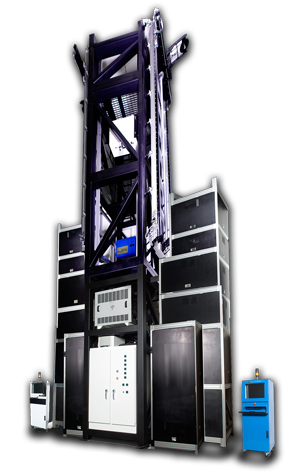

DUAL CORE/DUAL CLAD SINTER SYSTEMS

ASI/SILICA Machinery’s Dual Clad Sintering Systems are designed to provide quality drying and consolidation of silica soot preforms. When used in combination with the other core making and preform making equipment available from ASI/Silica, preforms can be made that can be directly drawn into optical fiber. The Clad Sintering Systems are a reliable, repeatable, automatic production source for high temperature silica processing in a controlled atmosphere. With a unique ground loading capability, the systems provide both easy and safe operating conditions.

ROD DRAW SYSTEM

The Rod Draw System is used to elongate or stretch glass preforms resulting in a decrease in diameter and an increase in length. It’s primary purpose will be to elongate core preforms which can be cut into multiple core rods for the deposition of additional cladding using ASI/Silica Machinery LLC’s OVD overcladding system. It may also be used to elongate and smooth fully cladded preforms, if desired. In this case, the resulting elongated preform is then drawn into single-mode optical fiber (or cut into multiple preforms before drawing). The systems are comprised of four main parts, a main structure, a furnace, an elongation pulling system, and a process control subsystem.

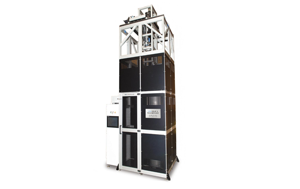

PREFORM SOAKING OVEN

The Preform Soaking Oven System is designed and manufactured by ASI/Silica Machinery, LLC. This system is used to heat glass preforms after they have been sintered enabling excess gas still trapped in the preform after sintering to escape. Excess gas which is invisible to the naked eye, can cause bubble formation in the glass resulting in fiber breaks during the draw process, if not removed from the glass preform. If the Preform Soaking Oven is not used, it could take days or even weeks for the excess gas to escape at ambient temperature. A further benefit of using the Preform Soaking Oven is a potential reduction in draw ramp up time since the glass preforms can be brought to the draw furnace already warm, reducing the time to bring the preform up to temperature at the draw tower.

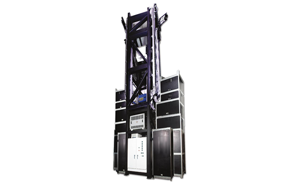

DUAL CLAD/CORE SINTER SYSTEMS

ASI/SILICA Machinery’s Dual Clad Sintering Systems are designed to provide quality drying and consolidation of silica soot preforms.

ROD DRAW SYSTEMS

The Rod Draw System is used to elongate or stretch glass preforms resulting in a decrease in diameter and an increase in length.

PREFORM SOAKING SYSTEMS

This system is used to heat glass preforms after they have been sintered— enabling the excess gas still trapped in the preform to escape .

VIEW OUR FULL PRODUCT LINE

Want to see ASI/Silica Machinery build, test, deliver and install our machines in factories across the globe?

Please enjoy our latest tradeshow video, complete with captions describing each phase of the process—

ASI/Silica Machinery Expertise

We have installed our products at leading optical fiber production sites in China, India, and throughout the world.

UL Certified

As the global safety science leader, UL helps companies to demonstrate safety, enhance sustainability, strengthen security, deliver quality, manage risk and achieve regulatory compliance.

Proven Reliablity

Our equipment is operating in Europe, India, Asia and America. We are proud to have empowered key companies to take full control of their optical fiber production to meet increasing global demands.

Professional Support

We provide training and consulting services in all areas of optical fiber and preform startup and production, including design, building, and pollution abatement support.

ASI was formed in 1997 with a mission to provide high quality and cost effective capital equipment and process technology to manufacturers of optical fiber and fused silica preforms.

Our management team is seasoned. Our founder has 38 years experience in this industry and all have prior experience making world-class optical fiber or cable

ASI/Silica Machinery is the leading commercial provider of OVD deposition and sintering process technology and products to the optical fiber manufacturer market.

Optical fiber is forward-facing and future-ready

ASI/Silica Machinery is the leading commercial provider of OVD deposition and sintering process technology and products to the optical fiber manufacturer market. We have installed our products at leading optical fiber production sites throughout the world. ASI/Silica Machinery has an aggressive development program to develop next generation equipment to help its customers continually improve both their cost of manufacturing and their product quality.

Our corporate, development, and manufacturing facilities are located in Los Angeles, California, USA. We also have branch offices in Australia.
